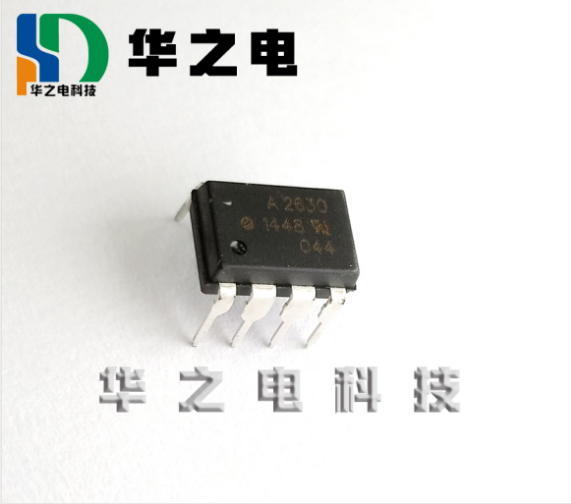

HCPL-2630-000E

HCPL-2630-000E

HCPL-2630-000E

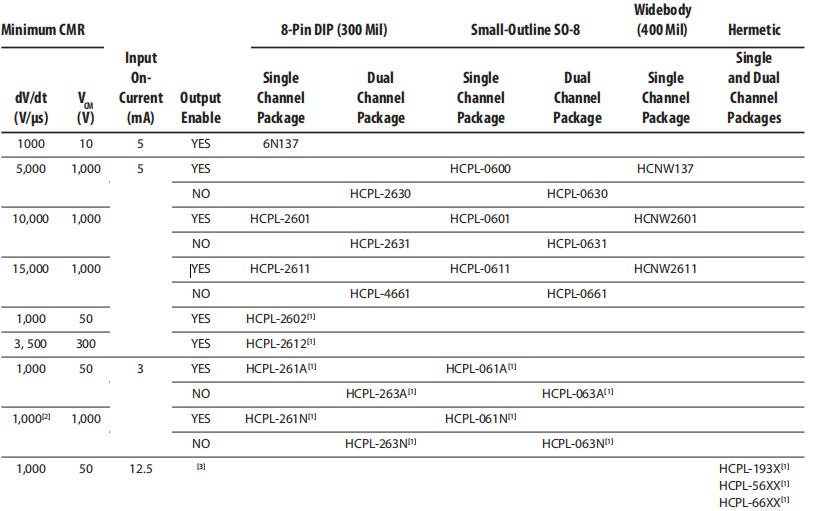

Features

 15 kV/μs minimum Common Mode Rejection (CMR)

at VCM = 1KV for HCNW2611, HCPL-2611, HCPL-4661,

HCPL-0611, HCPL-0661

 High speed: 10 MBd typical

 LSTTL/TTL compatible

 Low input current capability: 5 mA

 Guaranteed ac and dc performance over temper ature:

-40°C to +85°C

 Available in 8-Pin DIP, SOIC-8, widebody packages

 Strobable output (single channel products only)

 Safety approval

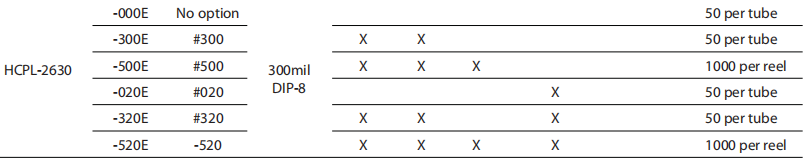

HCPL-2630-000E

UL recognized - 3750 V rms for 1 minute and 5000

Vrms* for 1 minute per UL1577 CSA approved

IEC/EN/DIN EN 60747-5-2 approved with

VIORM = 560 V peak for 06xx Option 060

VIORM = 630 V peak for 6N137/26xx Option 060

VIORM = 1414 V peak for HCNW137/26X1

 MIL-PRF-38534 hermetic version available

(HCPL-56XX/66XX)

Applications

 Isolated line receiver

 Computer-peripheral interfaces

 Microprocessor system interfaces

 Digital isolation for A/D, D/A conversion

 Switching power supply

 Instrument input/output isolation

 Ground loop elimination

 Pulse transformer replacement

 Power transistor isolation in motor drives

 Isolation of high speed logic systems
