HCPL-3140-500E
HCPL-3140-500E
HCPL-3140-500E
HCPL-3140-500E
Description
The HCPL-3140/HCPL-0314 family of devices consists
of a GaAsP LED optically coupled to an integrated
circuit with a power output stage. These optocouplers are ideally suited for driving power IGBTs
and MOSFETs used in motor control inverter
applications. The high operating voltage range of the
output stage provides the drive voltages required by
gate controlled devices. The voltage and current
supplied by this optocoupler makes it ideally suited for
directly driving small or medium power IGBTs. For
IGBTs with higher ratings, the HCPL-3150 (0.5 A) or
HCPL-3120 (2.0 A) opto-couplers can be used
Features
• 0.4 A minimum peak output current
• High speed response:
0.7 μs maximum propagation delay over temperature
range
• Ultra high CMR: minimum 25 kV/μs at VCM = 1 kV
• Bootstrappable supply current: maximum 3 mA
• Wide operating temperature range: –40°C to 100°C
• Wide VCC operating range: 10 V to 30 V over temp.
range

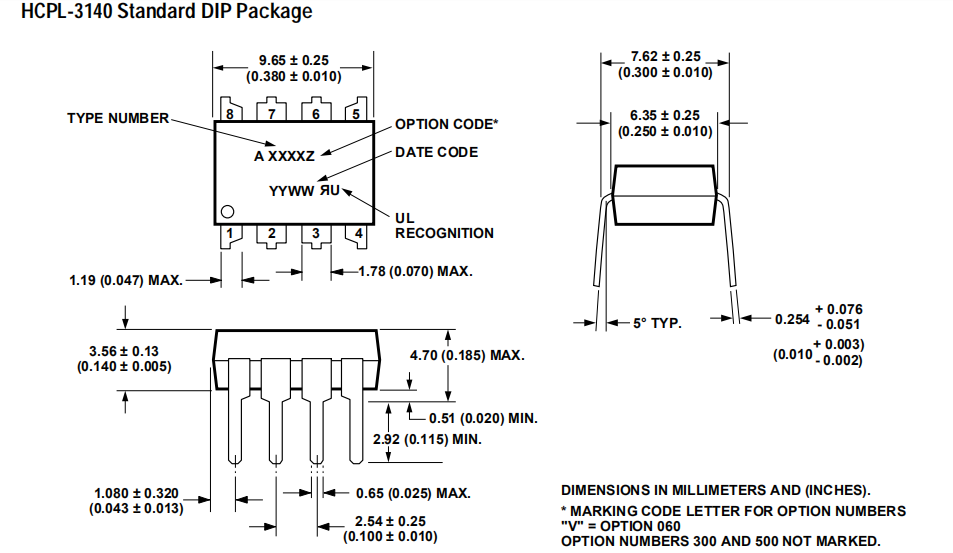

• Available in DIP8 and SO8 package
• Safety approvals: UL approval, 3750 Vrms for 1 minute.
CSA approval. IEC/EN/DIN EN 60747-5-2 approval
VIORM = 630 Vpeak (HCPL-3140)
