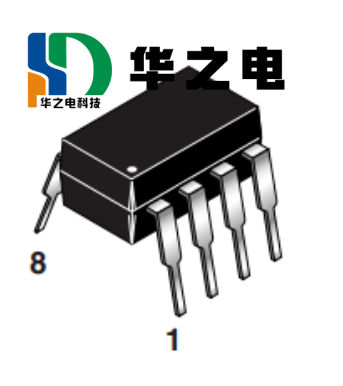

FAIRCHTLD  高速光耦 HCPL2631
FAIRCHTLD  高速光耦 HCPL2631
<>

FAIRCHTLD 高速光耦 HCPL2631

型号/规格:

HCPL2631

品牌/商标:

FAIRCHILD

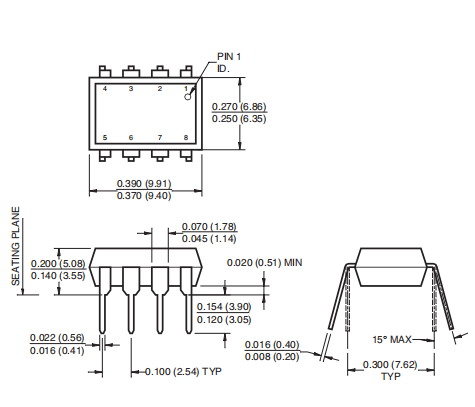

封装:

DIP

芯片颜色:

黑色

环保:

环保

包装:

1000/盒

产地:

泰国

年份:

19+

产品信息

HCPL2631

HCPL2631

HCPL2631

HCPL2631


Features

■ Very high speed-10 MBit/s

■ Superior CMR-10 kV/μs

■ Double working voltage-480V

■ Fan-out of 8 over -40°C to +85°C

■ Logic gate output

■ Strobable output

■ Wired OR-open collector

■ U.L. recognized (File # E90700)

Applications

■ Ground loop elimination

■ LSTTL to TTL, LSTTL or 5-volt CMOS

■ Line receiver, data transmission

■ Data multiplexing

■ Switching power supplies

■ Pulse transformer replacement

■ Computer-peripheral interface

Description

The 6N137, HCPL-2601/2611 single-channel and HCPL-2630/

2631 dual-channel optocouplers consist of a 850 nm AlGaAS

LED, optically coupled to a very high speed integrated photodetector logic gate with a strobable output. This output features

an open collector, thereby permitting wired OR outputs. The

coupled parameters are guaranteed over the temperature range

of -40°C to +85°C. A maximum input signal of 5 mA will provide

a minimum output sink current of 13mA (fan out of 8).

An internal noise shield provides superior common mode rejection of typically 10kV/μs. The HCPL- 2601 and HCPL- 2631 has

a minimum CMR of 5 kV/μs. The HCPL-2611 has a minimum

CMR of 10 kV/μs.
