HCPL-2630-500E

HCPL-2630-500E

HCPL-2630-500E

HCPL-2630-500E

Features

 15 kV/μs minimum Common Mode Rejection (CMR)

at VCM = 1KV for HCNW2611, HCPL-2611, HCPL-4661,

HCPL-0611, HCPL-0661

 High speed: 10 MBd typical

 LSTTL/TTL compatible

 Low input current capability: 5 mA

 Guaranteed ac and dc performance over temper ature:

-40°C to +85°C

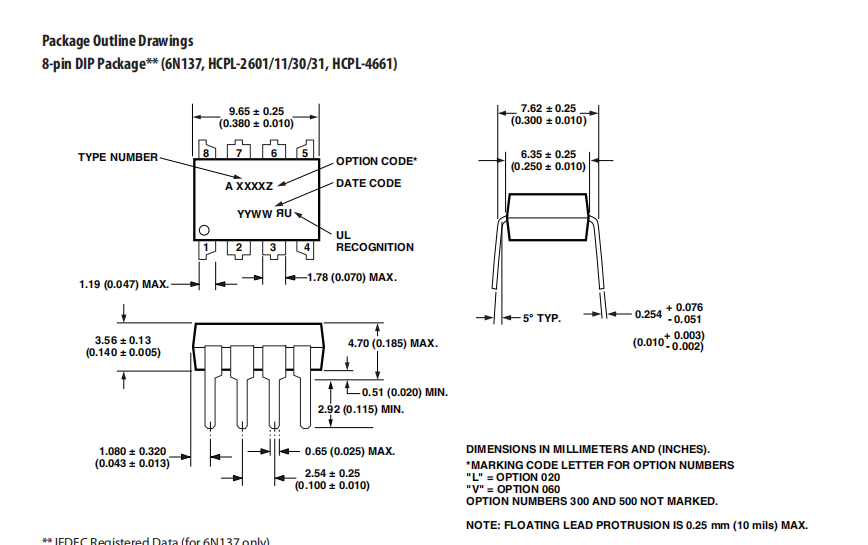

 Available in 8-Pin DIP, SOIC-8, widebody packages

 Strobable output (single channel products only)

 Safety approval

UL recognized - 3750 V rms for 1 minute and 5000

Vrms* for 1 minute per UL1577 CSA approved

IEC/EN/DIN EN 60747-5-2 approved with

VIORM = 560 V peak for 06xx Option 060

VIORM = 630 V peak for 6N137/26xx Option 060

VIORM = 1414 V peak for HCNW137/26X1

 MIL-PRF-38534 hermetic version available

(HCPL-56XX/66XX)

Applications

 Isolated line receiver

 Computer-peripheral interfaces

 Microprocessor system interfaces

 Digital isolation for A/D, D/A conversion

 Switching power supply

 Instrument input/output isolation

 Ground loop elimination

 Pulse transformer replacement

 Power transistor isolation in motor drives

 Isolation of high speed logic systems

Description

The 6N137, HCPL-26XX/06XX/4661, HCNW137/26X1 are

optically coupled gates that combine a GaAsP light emitting diode and an integrated high gain photo detector.

An enable input allows the detector to be strobed. The

output of the detector IC is an open collector Schottkyclamped transistor. The internal shield provides a guaranteed common mode transient immunity specifi cation

up to 15,000 V/μs at Vcm=1000V
