HCPL2531S
HCPL2531S
HCPL2531S
Option Example Part Number Description
S 6N135S Surface Mount Lead Bend
SD 6N135SD Surface Mount; Tape and reel
W 6N135W 0.4" Lead Spacing
V 6N135V VDE0884
WV 6N135WV VDE0884; 0.4” lead spacing
SV 6N135SV VDE0884; surface mount
SDV 6N135SDV VDE0884; surface mount; tape and reel
Features
■ High speed –1 MBit/s
■ Superior CMR – 10kV/μs

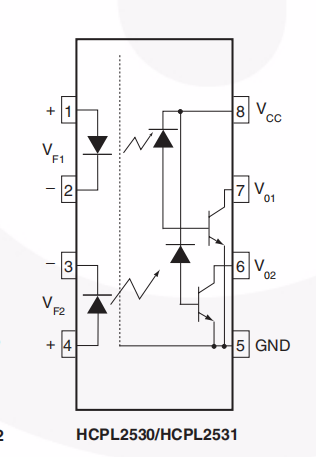

■ Dual-Channel HCPL2530/HCPL2531
■ Double working voltage – 480V RMS
■ CTR guaranteed 0–70°C
■ U.L. recognized (File # E90700)
Applications
■ Line receivers
■ Pulse transformer replacement
■ Output interface to CMOS-LSTTL-TTL
■ Wide bandwidth analog coupling
Description
The HCPL4502, HCPL2503, 6N135, 6N136, HCPL2530
and HCPL2531 optocouplers consist of an AlGaAs
LED optically coupled to a high speed photodetector
transistor.
A separate connection for the bias of the photodiode
improves the speed by several orders of magnitude over
conventional phototransistor optocouplers by reducing
the base-collector capacitance of the input transistor.
An internal noise shield provides superior common
mode rejection of 10kV/μs. An improved package allows
superior insulation permitting a 480V working voltage
compared to industry standard of 220V.
